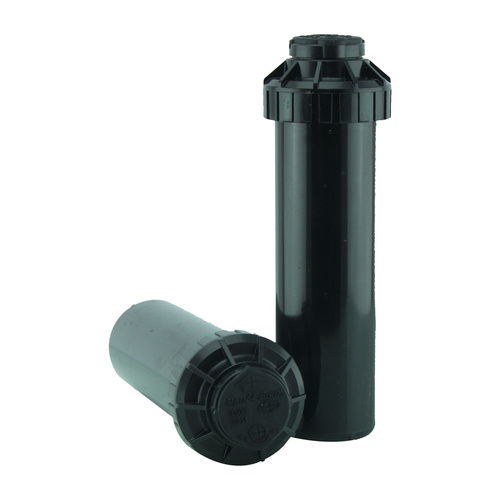

Rainbird 5000 series rotor
Rainbird 5000 series gear drive 360 degree adjustable rotor sprinkler
Calculate Shipping
Offering unmatched performance from 7.6m to 15.2m, Rain Bird 5000 series rotors are ideal for residential, light commercial and commercial applications. By combining the industry’s only Triple-Blade Wiper Seal with unrivaled Rain Curtain™ nozzles, 5000 series rotors give you even coverage and enduring reliability that the best contractors demand.
Exclusive Triple Blade Wiper Seal
Providing seven times the leak protection of single-blade wiper seals, the Triple-Blade Wiper Seal makes 5000 rotors the most leak-resistant rotors on the market. Designed to keep water in and debris out, the Triple-Blade Wiper Seal saves you time and money—and it saves your reputation, too.
Industry-Leading Rain Curtain Nozzles
Engineered to provide a uniform spray pattern that competitors can’t match, Rain Curtain nozzles deliver large water droplets for superior wind resistance and gentle close-in watering that eliminates brown spots around the head.
(40753810013057)
Rain Curtain Nozzle Technology
- Rain Curtain Nozzles standard on all 5000 Series Rotors
- Large water droplets for greater wind resistance
- Effective close-in watering
- Even distribution over the entire radius
- Tree of nozzles including four low angle (angle of trajectory 10°) and eight standard angle Rain Curtain Nozzles (angle of trajectory 25°) provides 7.6m to 15.2m distance of throw
- Self-aligning nozzles
Installation and Maintenance
- Slip clutch mechanism for quick adjustment on installation
- Faster maintenance with a new self-cleaning arc adjustment screw
- Top-adjust arc adjustment requiring only a flathead screwdriver
- Radius adjustment screw allows up to 25% radius reduction without changing nozzles
Design Solutions
- Award-winning MPR nozzle set simplifies design and installation by providing matched precipitation from 25' to 35' (7.6 to 10.7m)
- Standard rubber cover for extra protection. 5000 Plus Series features a green cover while the 5000 Series features a black cover
- 40-360° arc rotation and reversing full-circle rotation in one.
Durability
- Heavy-duty cover assembly for extra durability in residential or commercial applications
- Heavy-duty retract spring assures positive pop-down
- Pressure-activated triple-blade multi-function wiper seal protects internals from debris and assures positive pop-up and retraction
Operating Range
- Precipitation rate: 5 to 26 mm/h
- Radius: 7.6 to 15.2 m
- Radius may be reduced up to 25% with radius reduction screw
- Pressure: 25-65 psi (1,7 to 4,5 bar)
- Flow Rate: 0.73 to 9.63 gpm (4,2 to 36,6 l/m)
Specifications
- 3/4" (20/27) NPT female bottom threaded inlet
- Reversing full and part circle adjustment 40° – 360°
- Full circle only adjustment 360°
Dimensions
- Pop-up height: 10.2cm
- Overall body height: 19.7cm
- Exposed surface diameter: 4.1cm
Note: Pop-up height measured from the cover to the nozzle. Overall body height is measured popped down
| SKU | 40753810013057 |
| Brand | Rainbird |
| Shipping Weight | 0.2620kg |
| Shipping Width | 0.190m |
| Shipping Height | 0.070m |
| Shipping Length | 0.070m |
| Shipping Cubic | 0.000931000m3 |
| Unit Of Measure | ea |
