$26.35 per ea
In Stock

Rainbird 3500 series gear drive 360 degree adjustable rotor sprinkler with Seal-A-Matic check valve to prevent low head drainage on sloped areas.

Calculate Shipping

Rainbird 3500 series rotor sprinkler with Seal-A-Matic check valve to prevent low head drainage on sloped areas.

Low head drainage is caused by changes in elevation.Gravity forces water in the lateral line to drain out of the lowest head of the zone. Install the Rain Bird 3500 rotor with the Seal-A-Matic check valve and put an end to unnecessary water waste.

The Rain Bird Seal-A-Matic check valve holds back up to 2m of elevation pressure, sealing water in the lateral line and preventing standing water caused by low head drainage. All of the performance and reliability you expect from the leader in irrigation with the water-saving benefit of the Seal-A-Matic check valve.

(40753810011114)

  • 4 in. part/full-circle pop-up rotor sprinkler with Seal-A-Matic (SAM™) check valve
  • Seal-A-Matic (SAM™) check valve holds up to 7 feet (2,1m) of elevation change, to prevent puddling and erosion caused by low head drainage
  • Top-adjust arc adjustment requiring only a flat-blade screwdriver
  • 40- 360° Arc Part-Circle arc rotation and reversing Full-Circle rotation in one
  • Attachable nozzle tree of six Rain Curtain™ nozzles
  • Radius adjustment screw allows up to 35% radius reduction without changing nozzles
  • Quick Check Arc/Fast Forward
  • Dual action, positive stop wiper seal protects internals from debris and assures positive pop-up and retraction
  • Self-adjusting stator does not require replacement when changing nozzles
  • Water-lubricated gear-drive design for durable, reliable operation
  • Easily removable filter screen
  • Nozzle removal feature
  • Arc setting factory preset at 180° for installation convenience
  • Precipitation rate: .37 to .72 inches per hour
    (9 to 18 mm/h)
  • Radius: 15 to 35 feet (4,6 to 10,7 m)
  • Radius may be reduced up to 35% with Radius Reduction Screw
  • Pressure: 25-55 psi (1,7 to 3,8 Bars)
  • Flow Rate: .54 to 4.6 gpm (,12 to 1,04 m 3/h)
  • 1/2" NPT female bottom threaded inlet
  • Reversing Full-and Part-circle adjustment 40° – 360°

Dimentions:

  • Pop-up height shrub: 4" (10,2 cm)
  • Overall body height shrub: 6.6" (16,8 cm)
  • Exposed surface diameter: 1.16" (2,9 cm)
  • Note: Pop-up height measured from cover to center of nozzle.
    Overall body height is measured popped down.
SKU 40753810011114
Brand Rainbird
Shipping Weight 0.1470kg
Shipping Width 0.170m
Shipping Height 0.055m
Shipping Length 0.055m
Shipping Cubic 0.000514000m3
Unit Of Measure ea

Be The First To Review This Product!

Help other Paul Munns Instant Lawn users shop smarter by writing reviews for products you have purchased.

Write a product review

You May Also Like


Threaded elbow 19 x 15 bsp

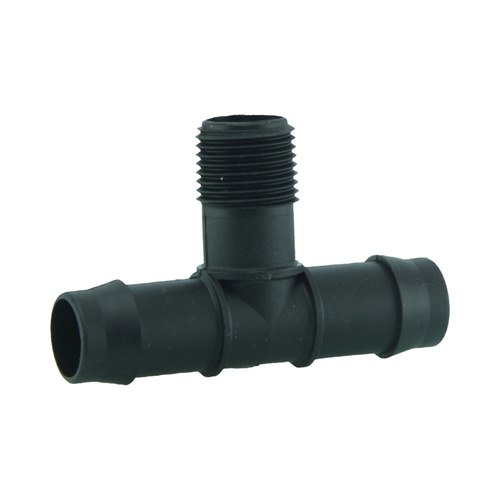

Threaded Tee 19 x 15 bsp
