$20.95 per ea
In Stock

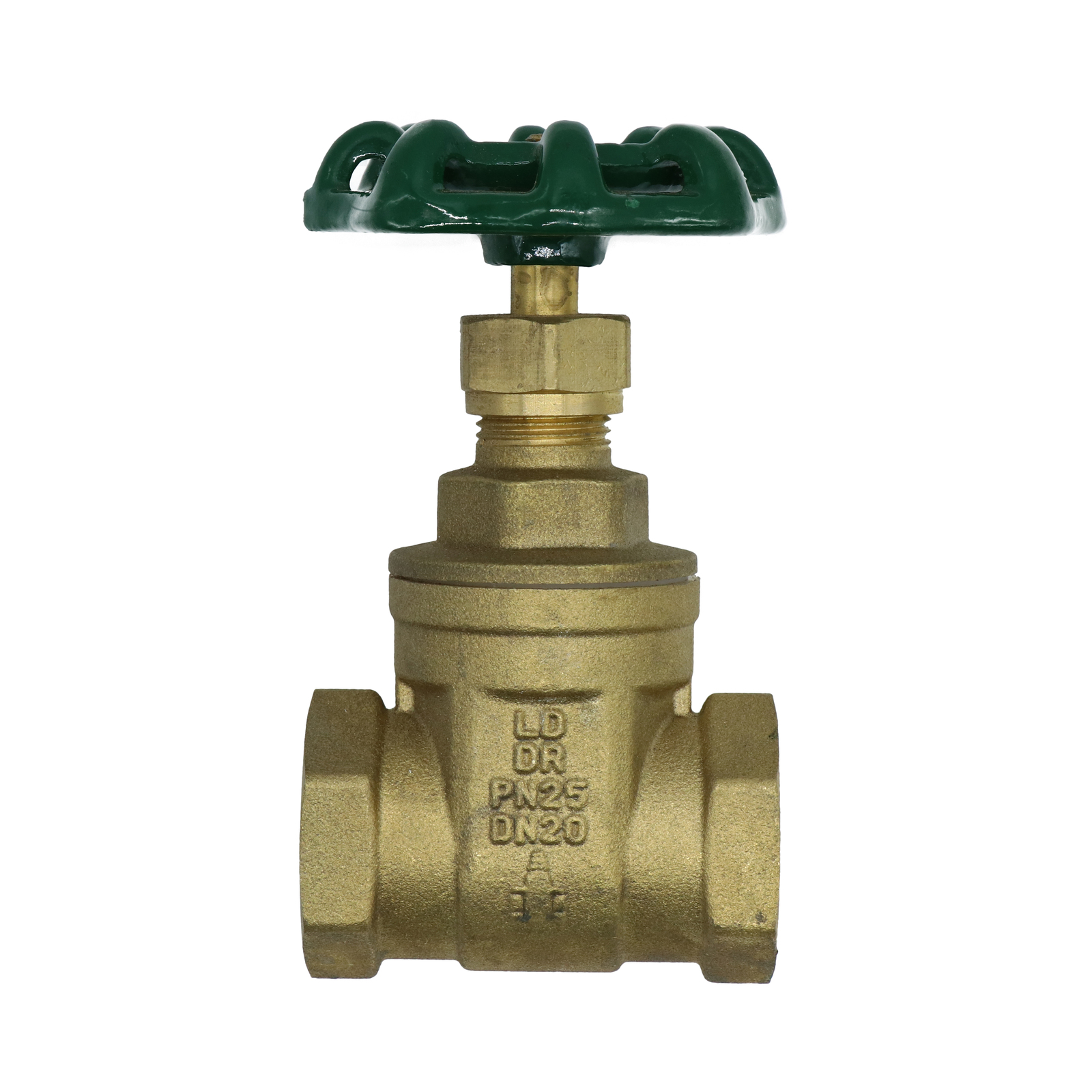

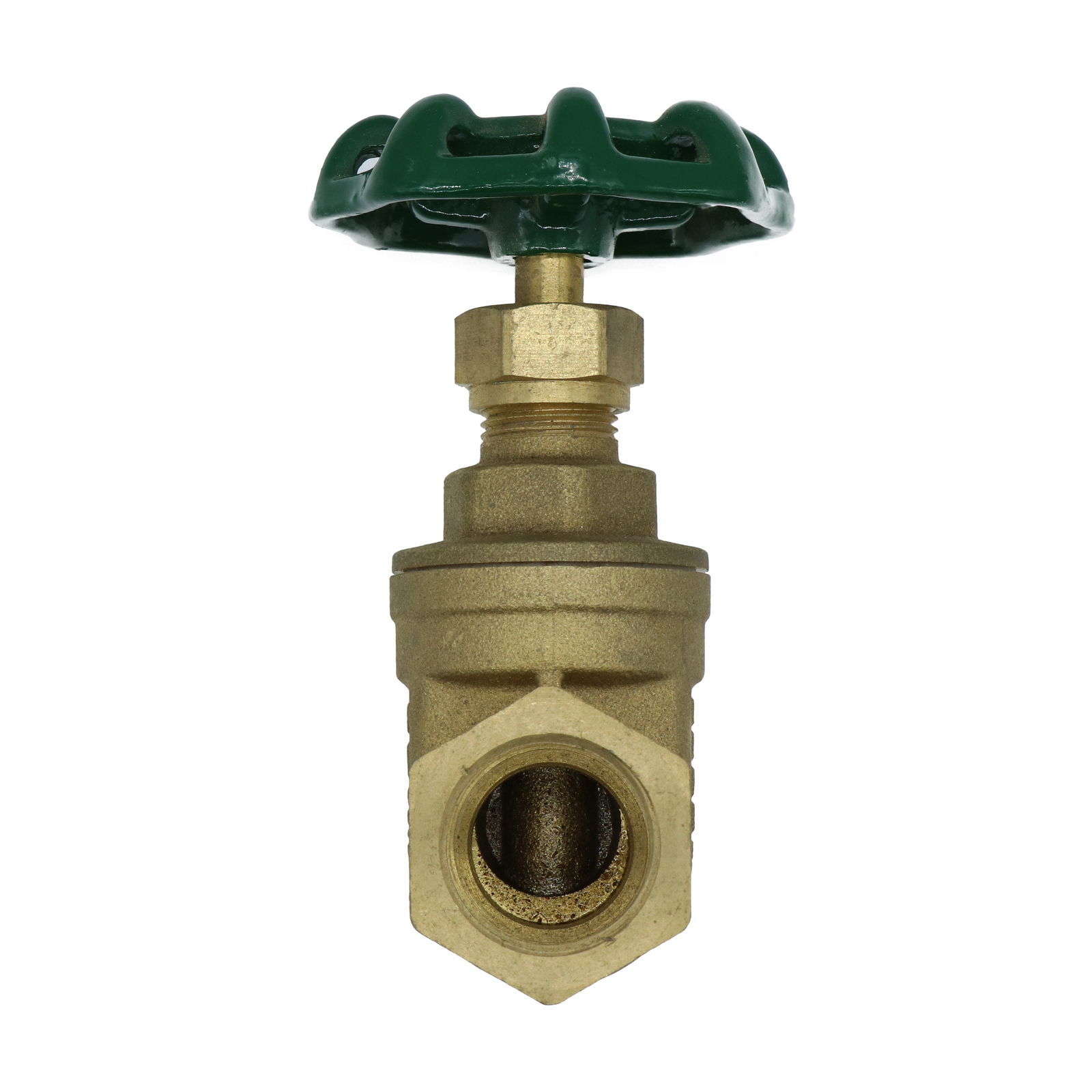

20mm Watermarked Gate Valve - Brass

Calculate Shipping



Australia Post - Regular 3kg - $18.50
3kg Parcel Post Satchel - Signature On Delivery

20mm Watermarked Gate Valve - Brass

Features and Benefits

  • Watermark approved
  • Full Bore
  • 100% pressure tested
  • Tested and certified to AS 1628

(GV20)

  • Working temperature -20°C to 120°C
  • Maximum pressure rating 2500 KPa
  • Length: 64mm
  • Height: 114mm
Part  Material
Body DR Brass
Cover DR Brass
Gate DR Brass
Stem DR Brass
Lock Nut DR Brass
Packing Gland PTFE
Gasket PTFE
Hex Cap Stainless Steel
Indication Cap Stainless Steel
Nut Brass
Handle Cast Iron
SKU GV20
Shipping Weight 0.5300kg
Shipping Width 0.070m
Shipping Height 0.110m
Shipping Length 0.060m
Shipping Cubic 0.000462000m3
Unit Of Measure ea
