DVF valve w 9V latching coil

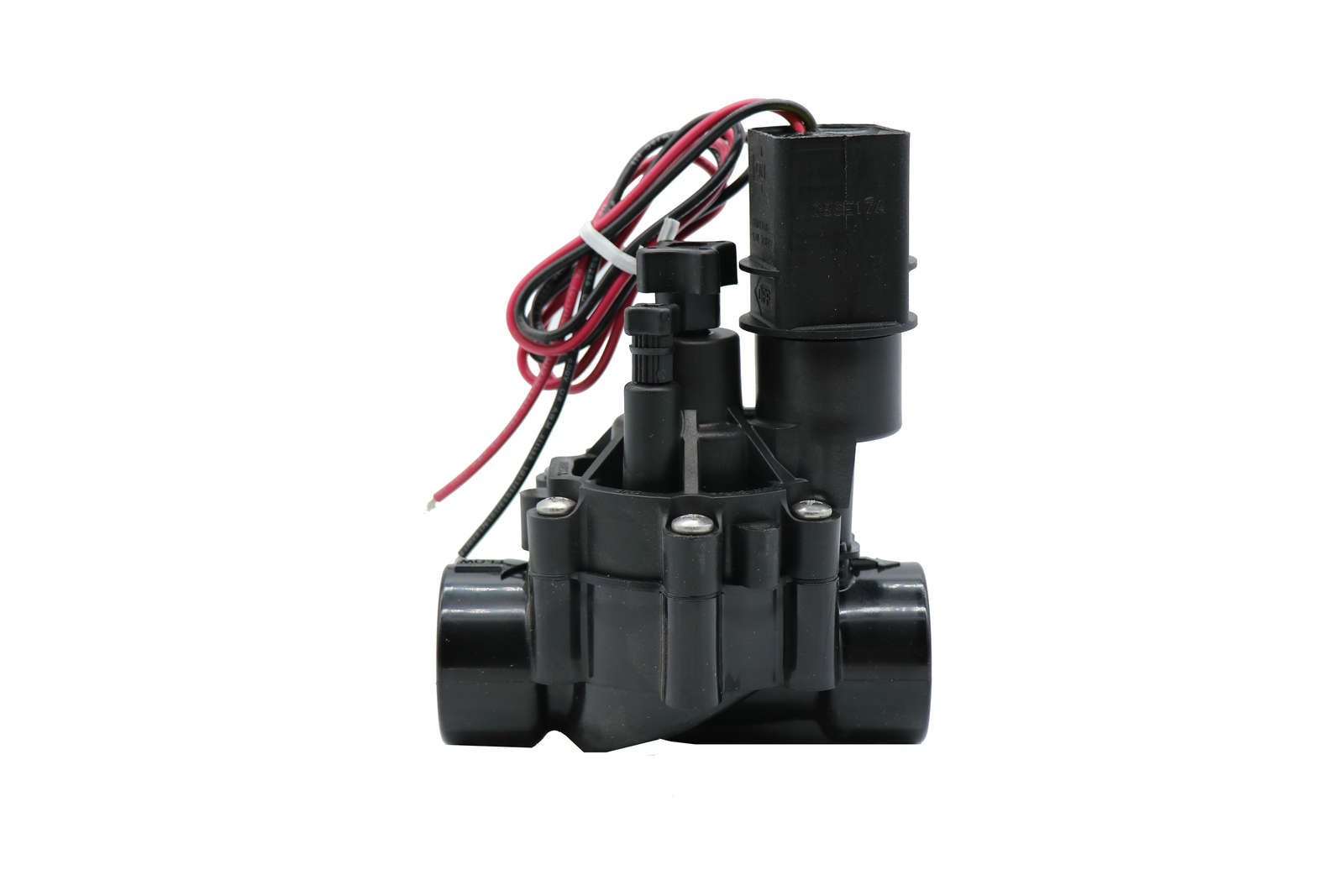

Rain Bird DVF Vale with 9v Latching Coil

$65.95 per ea
In Stock

Rain Bird 25mm DVF Automatic Inline Diaphragm Valve with 9v Latching Solenoid for use with battery operated controllers. Designed for use with Rain Bird WPX controllers but can also be used with Hunter Nodes or similar.

Calculate Shipping



Australia Post - Regular 3kg - $18.50
3kg Parcel Post Satchel - Signature On Delivery

Rain Bird 25mm DVF Automatic Inline Diaphragm Valve with 9v Latching Solenoid - the industry leader for over 25 years. Designed for use with Rain Bird WPX controllers but can also be used with Hunter Nodes or similar.

The Rain Bird DVF valve is the premium valve product chosen by more professionals than any other valve on the market. Its long history of reliable performance makes it the natural choice for your landscape. Its consistent, problem-free performance means you can spend less time thinking about your irrigation system and more time enjoying your landscape.

Features and Benefits

  • Double-filtered (diaphragm and solenoid) pilot-flow design for maximum reliability and grit resistance
  • Buna-N, balanced pressure diaphragm with self-cleaning 90 mesh (200 micron) pilot water filter and captive spring
  • Energy-efficient, low-power encapsulated solenoid with captured plunger and 90-mesh (200 micron) solenoid filter
  • Unique, easy-to-turn patented pressure assisted flow control mechanism
  • External bleed to manually flush system of dirt and debris during installation and system start-up
  • Internal bleed for spray-free manual operation
  • Operates in low-flow and Landscape Drip applications when a 200 mesh filter is installed upstream
  • Unique, easy-to-turn patented pressure assisted flow control mechanism

(tbd2)

  • Pressure: 15 to 150 psi (1,0 to 10,4 bar)
  • 100-DVF Flow Control Model: 0.2 to 40 gpm (0,05 to 9.085 m3/h; 0,01 to 2,52 l/s); For flows below 3 gpm (0,68 m3/h; 0,19 l/s) or any Landscape Drip application, use a 200 mesh filter installed upstream.
  • Water temperature: Up to 43°C
  • Ambient air temperature: Up to 52°C
  • 9v Latching coil
  • Height : 14.2 cm
  • Length: 11.1 cm
  • Width: 8.4 cm
SKU tbd2
Brand Rain Bird
Shipping Weight 0.3950kg
Shipping Width 0.090m
Shipping Height 0.125m
Shipping Length 0.150m
Shipping Cubic 0.001687500m3
Unit Of Measure ea
