Rainbird ESP-TM2 Outdoor 12 st

Rain Bird ESP-TM2 12 station controller. Wi-Fi Ready.

$320.00 per ea
In Stock

Rain Bird ESP-TM2 12 station Wi-Fi capable controller.

Calculate Shipping

The ESP-TM2 irrigation controller is the perfect option for basic residential solutions. Building upon Rain Bird’s legacy of The Intelligent Use of Water®, this controller offers simple water saving features that you will actually use.

With the flexibility of 3 programs and 4 start times available per program, you can tailor your watering schedule to your landscape’s needs.

The ESP-TM2 provides the Extra Simple Programming interface you are familiar with in a controller that is built to last!

Best of all, you can upgrade the ESP-TM2 into a WiFi-enabled controller by simply installing a new LNK WiFi Module, without having to replace the entire unit.

(10077985075917)

  • Suitable for indoor or outdoor installations
  • Factory installed outdoor rated power cord for your convenience
  • Quickly program a schedule in just 3 steps
  • 3 available programs (A, B, C) with up to 4 start times for each program
  • Simple one-touch manual watering
  • NEW large back-lit LCD display for improved visibility in low-light and direct sunlight conditions
  • By simply plugging in a Rain Bird LNK WiFi Module (sold separately), users can access, operate and monitor their irrigation system from anywhere.
  • Internet-based weather information is used to make daily adjustments to the irrigation schedule, saving up to 30% in water.
  • Contractor Default™ allows you to easily save and restore your custom schedule
  • Delay Watering up to 14 days and automatically resume watering after the set delay has elapsed
  • Bypass Rain Sensor for any station gives you the ability to customize which stations react to a rain sensor
  • Set Permanent Days Off per program to ensure watering never occurs on days when maintenance crews are on site (for Odd/Even/ Cyclic schedules)
  • Seasonal Adjust by program allows you to easily reduce or increase watering by program

Controller Hardware

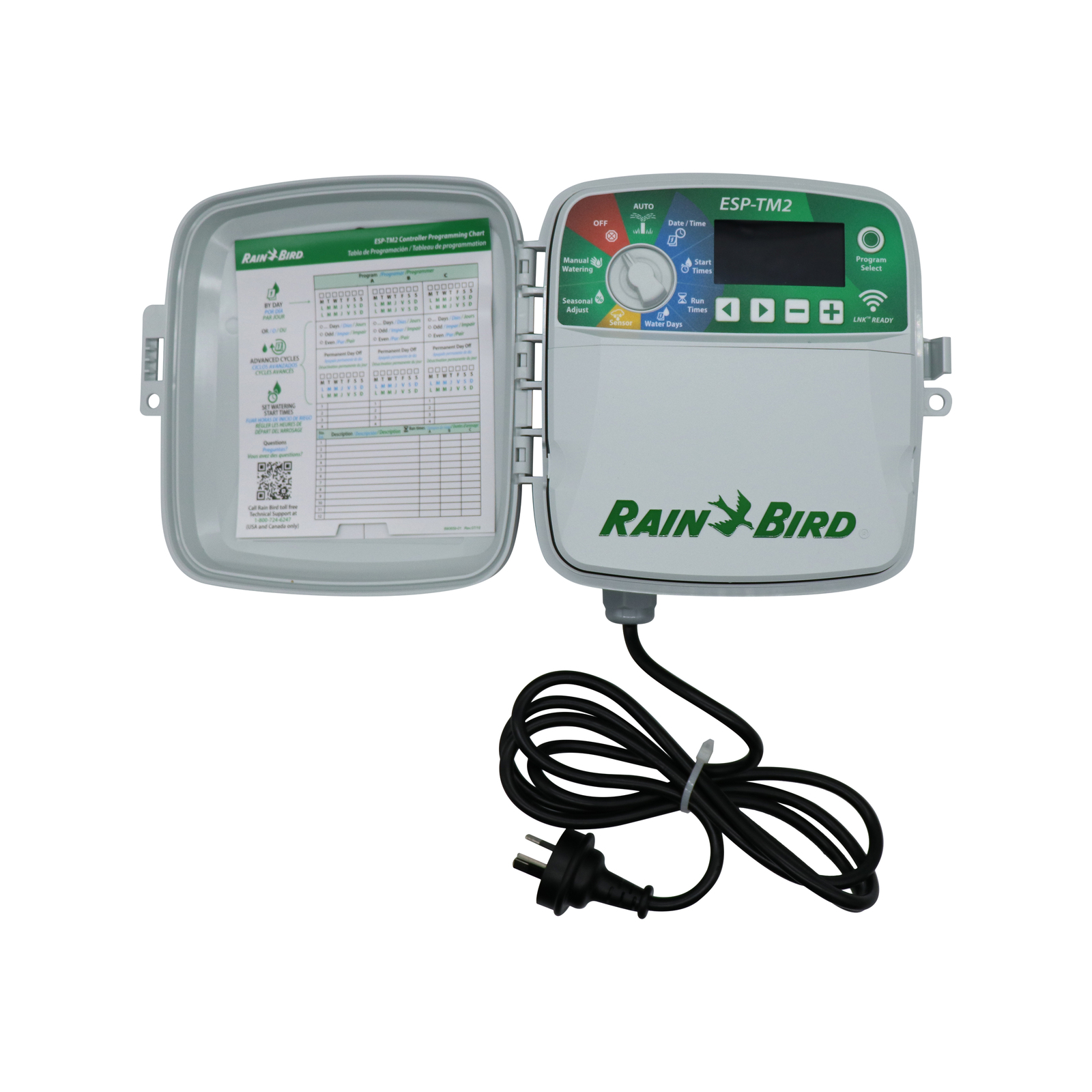

  • Plastic wall-mount cabinet with door
  • Mounting screws with anchor shields
  • Factory installed pigtail

Controller Features

  • Familiar, easy to navigate user interface
  • Rain sensor input with bypass capability
  • Master valve/pump start circuit
  • Nonvolatile (100 year) storage memory
  • Electronic diagnostic circuit breaker
  • Remote accessory port for Rain Bird approved accessory devices

Scheduling Features

  • Program based scheduling with 3 individual programs and 4 independent start times per program for 12 total start times
  • Watering schedule options: Custom Days of the week, ODD or EVEN calendar days, or Cyclic (every 1 – 30 days)

Advanced Features

  • Compatible with Rain Bird LNK WiFi Module (sold separately) to enable remote programming, operation and alerts from the Rain Bird mobile app.
  • Manual Watering option for all stations, a single station or an individual program
  • Seasonal Adjust applied to all programs or an individual program
  • Delay Watering up to 14 days (applies only to stations set to obey Rain sensor)
  • Permanent Days Off (for Odd, Even or Cyclic programming)
  • Sensor bypass for all programs or for individual stations
  • Adjustable delay between stations
  • Contractor Default™ Program Save and Restore saved program(s)
  • Master Valve on/off by station
  • Automatic short detect with station specific alarm messages

Operating Specifications

  • Station timing: 1 minute to 6 hours
  • Seasonal Adjust: 5% to 200%

Max Operating Temperature

  • 122°F (50°C)

Electrical Specifications

  • Input required: 120VAC (±10%) @ 60Hz
  • 230VAC (±10%) @ 50/60Hz
  • Output: 65A at 24VAC
  • Master Valve/Pump Start Relay
  • External battery back-up not required. Nonvolatile memory permanently saves the current programming and a 10 year life lithium battery maintains the controllers time and date during power outages.

Dimensions

  • Width:  20.1 cm
  • Height: 20.0 cm
  • Depth: 9.0 cm
SKU 10077985075917
Brand Rain Bird
Shipping Weight 1.5570kg
Shipping Width 0.210m
Shipping Height 0.095m
Shipping Length 0.215m
Shipping Cubic 0.004289250m3
Unit Of Measure ea

Be The First To Review This Product!

Help other Paul Munns Instant Lawn users shop smarter by writing reviews for products you have purchased.

Write a product review
