$249.95 per ea
In Stock

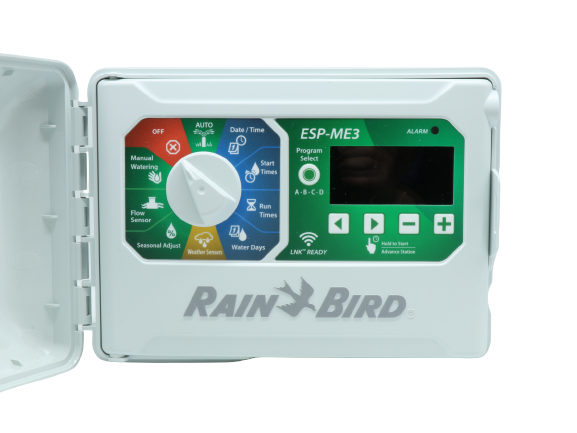

Rain Bird WiFi capable expandable modular controller. Start as a four station and expand with three or six station modules to increase to up to 22 stations.

Calculate Shipping

Part of the new range of Rain Bird WiFi capable controllers. Simply attach a LNK WiFi Module to get your controller online. Finally, you can program and adjust your irrigation system from the comfort of your couch or while you are away. Save water by connecting your controller to real time online weather updates to automatically adjust watering times.

With 4- to 22-station scalability, the ESP-Me helps you better serve your customers. Install the same controller on residential and light commercial sites -- the more stations you add, the more you save, providing you and your customers with more value for the money.

(10077985075535)

WiFi Connectivity
By simply plugging in a Rain Bird LNK WiFi Module (sold separately), users can access, operate and monitor their irrigation system from anywhere. Internet-based weather information is used to make daily adjustments to the irrigation schedule, saving up to 30% in water.

Tailored Watering Schedules
Extra Simple Programming makes it easy for your crew to meet each landscape’s unique needs. With the controller up and running faster than ever before, you’ll get more jobs done in less time.

Single-Controller Simplicity
Forget training crews to install different controllers. The ESP-Me can do it all, saving you valuable time and labour costs. The scalability of the ESP-Me and the choice of installing either 3- or 6-station modules mean more flexibility and a competitive edge.

Delay Watering
Is Mother Nature doing the watering for you? Are you having a party and want to make sure the landscape is dry? Easily postpone irrigation for up to 14 days. Normal irrigation will resume automatically.

Bypass Rain Sensor by Station
Got a landscaped area under an eave or deck? Bypass the rain sensor for that station(s)—or for the entire landscape.

Seasonal Adjust by Program
When the seasons change, change with them. Reduce watering down to as little as 5 percent of your scheduled program times or increase it up to 200 percent. Apply to all programs or to each program individually.

Total Run Time Calculator by Program
Calculate the specific amount of time the controller is scheduled to run for a given program. Use it to ensure morning watering is finished before the family wakes up, or reduce your run time to comply with water restrictions.

Short Detect/Programming Errors
The ESP-Me visually notifies you of electrical and programming issues with a bright red LED and scrolling messages across the LCD display.

One-Touch Watering
Need an easy way to turn on the system? The ESP-Me offers one-touch watering. With the dial in the AUTO position, just press and hold the right teardrop arrow button.

Contractor Default™
Prevent callbacks with Contractor Default™. Simply save your programs after setup. If the original watering schedule is overwritten in error, easily restore it in just two steps.

User-Friendly Rain Bird Design
Featuring vibrant colours, an intuitive dial and a bright LCD display, the new ESP-Me is easy on the eyes. And with legendary Extra Simple Programming and the Rain Bird reliability you trust, it’s the same easy setup, just better.

Operating Specifications

Station timing: 1 minute to 6 hours

Seasonal Adjust: 5% to 200%

Max operating temperature: 149°F (65°C)

Electrical Specifications

Input required: 120V∿, 60Hz, 0.3A  (International models: 230V∿, 50-60Hz, 0.136A)

Output: 25.5V∿, 60Hz, 1A  (International models: 24V∿, 50-60Hz, 1.0A)

Master Valve/Pump Start Relay

Operating Voltage: 24VAC 50/60Hz

Max Coil Inrush: 11VA

Max Coil Holding: 5VA

Idle/Off power draw 0.06 amps at 120VAC

Power backup is not required. Nonvolatile memory permanently saves the current programming and a 10-year life lithium battery maintains the controllers time and date during power outages.

Certifications

CE [European Union], IP24, RCM [Australia and New Zealand], IRAM [Argentina], INMETRO [Brazil], Cم [Morocco], SABS [South Africa], NRCS [South Africa]

Dimensions

Width: 10.7 in. (27.2 cm)

Height: 7.7 in. (19.5 cm)

Depth: 4.4 in. (11.2 cm)

SKU 10077985075535
Brand Rain Bird
Shipping Weight 2.7860kg
Shipping Width 0.300m
Shipping Height 0.240m
Shipping Length 0.130m
Shipping Cubic 0.009360000m3
Unit Of Measure ea

3 years
