$199.00 per ea
In Stock

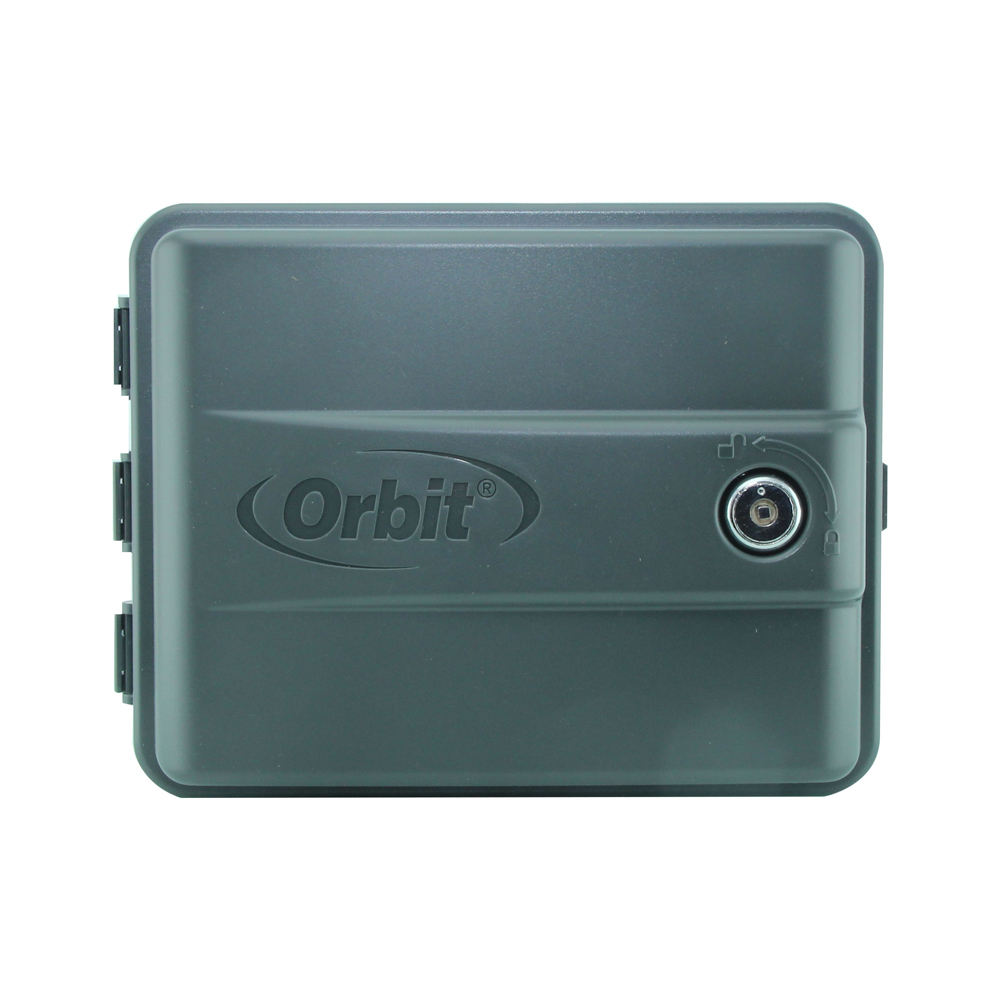

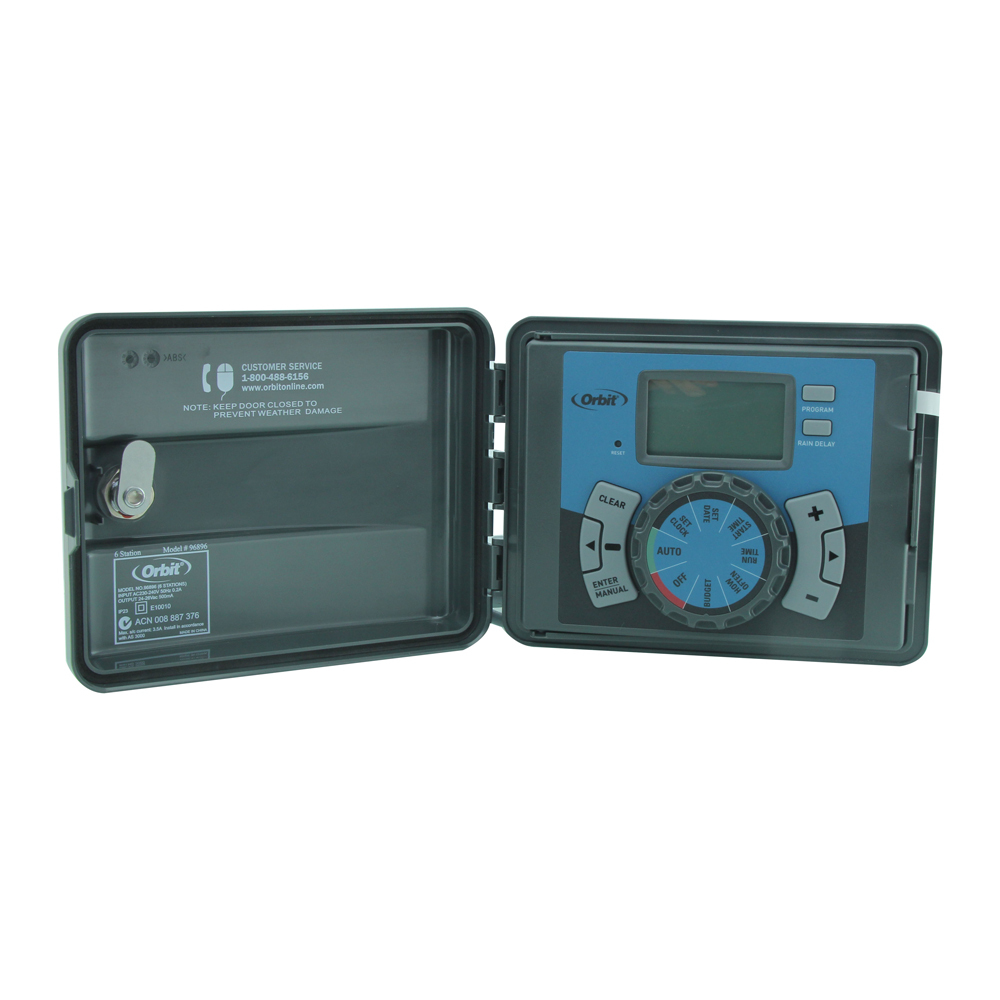

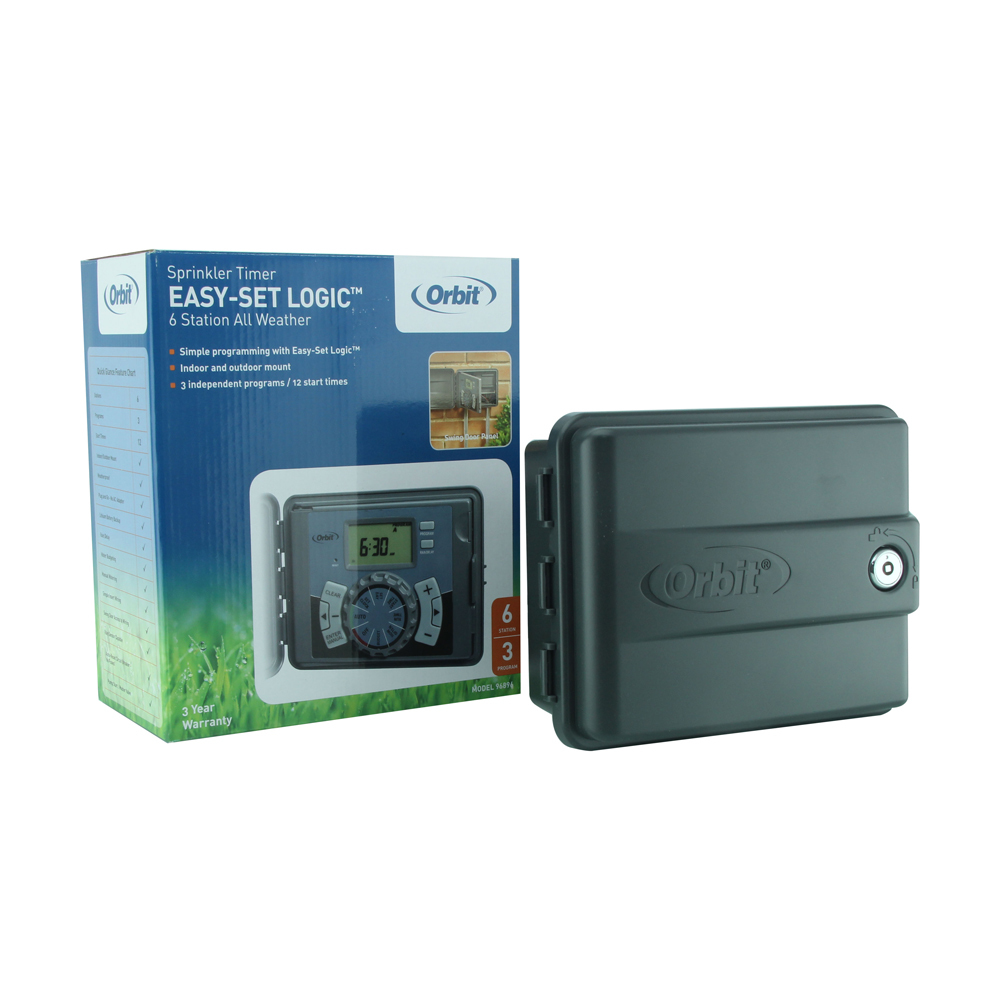

Orbit Easy-Set Logic outdoor irrigation controller, 6 stations. Its large rotary dial makes programming simple, and its oversized screen helps to easily view all settings.

Calculate Shipping

Orbit Easy Set Logic sprinkler timer supplied in a weatherproof cabinet with internal transformer for indoor or outdoor installation. It has a large rotary dial which makes programming simple, and an oversized screen which helps to easily view all settings. This straightforward, user friendly sprinkler controller combines simplicity of operation with feature rich flexability for use in home watering systems.

Features and Benefits

  • Intuitive user interface - Large dial
  • Large easy to read LCD display
  • Indoor / Outdoor UL cabinet - supplied with power cord
  • Three Independent Programs - A, B & C
  • 4 Start times per program
  • Back up Fail safe programming
  • Select specific 7 day watering
  • Interval days watering 1 to 32 days
  • Odd / Even day watering
  • Manual watering by program or station
  • Non Volatile Memory
  • Start Time Stacking - Prevents overlapping of cycle starts
  • Water Budget - Seasonal water adjustment 10% to 200%
  • Rain Sensor capable
  • Rain Sensor bypass Switch
  • Rain Delay - Turns off the watering for 24, 48 or 72 hrs
  • Pump Start / Master Valve terminal
  • Swing Door Access to Wiring
  • Works with residential standard 24 vac sprinkler systems
  • Heavy Duty Cabinet - UV and water resistant

(046878968967)

Controller Features

  • Large LCD display with easy to navigate user interface
  • Weather Sensor input with software override
  • Master valve/pump start circuit
  • Non-Volatile (100- year) program memory
  • Programmable under battery power

Scheduling Features

  • Zone based Scheduling, allows for independent schedules assigned to each zone. (Run times, Start Times and Watering Days are customizable by zone)
  • Contractor Rapid Programming™ automatically copies the Start Times and Watering Days from zone 1 to all remaining zones at initial set up
  • 6 independent Start Times per zone
  • 4 Watering Days options by zone: Custom days of week, ODD calendar days, EVEN calendar days, Cyclic (every 1 – 14 days)
  • Manually water ALL or SINGLE zone on demand

Advanced Features

  • Electronic diagnostic circuit breaker
  • Contractor Rapid Programming™ and “Copy previous Zone” for faster initial set up
  • Contractor Default™ Save / Restore
  • Weather Sensor bypass
  • Weather Sensor bypass by Zone

Easy to Install Controller Hardware

  • The ESP-RZX Controller requires only two mounting screws. A guide for ½“ or ¾” conduit allows for professional installation of field wires into the cabinet.
  • Plastic wall-mount case
  • 2 x AAA batteries for time and date backup (included)

OPERATING SPECIFICATIONS:

  • Run times - 1 to 240 minutes
  • Automatic Starts - 4 start times in A and B programs Ideal for drip irrigation, new lawns and reducing runoff
  • Programming Schedule - Days of week program A. Watering intervals and Odd / Even days program B
  • Rain Delay - Setting for 24, 48 and 72 hours
  • Water Budgeting - Adjusts for seasonal watering (10% to 200% in 10% increment



ELECTRICAL SPECIFICATIONS:

  • Internal Transformer output - 24vac, 600mA
  • Capacity - Pump/Master valve and one station per activation
  • Battery backup - Replaceable 3V Lithium
  • Auto Reset Circuit Breaker - No Fuses
  • UL listed / CE approved
SKU 046878968967
Brand Orbit
Shipping Weight 1.6080kg
Shipping Width 0.240m
Shipping Height 0.210m
Shipping Length 0.110m
Shipping Cubic 0.005544m3
Unit Of Measure ea

Be The First To Review This Product!

Help other Paul Munns Instant Lawn Adelaide users shop smarter by writing reviews for products you have purchased.

Write a product review

We Also Recommend


You May Also Like


Solenoid valve 25mm fc
Valve box - Medium rec

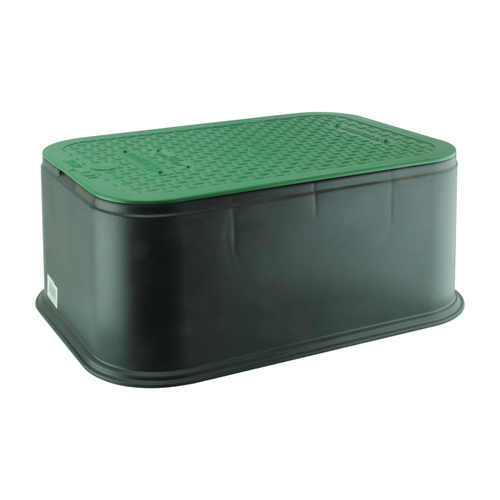

Valve box - Large rec
